Q35 Locator Product Specification

Product Specification

Quuppa Q35 (Quuppa Locator) is a part of the Quuppa Intelligent Locating System™. Other parts of the Quuppa Intelligent Locating System are Quuppa Tags and Quuppa Positioning Engine software. The Quuppa Intelligent Locating System allows you to locate and track any objects equipped with Quuppa Tags in an environment equipped with Quuppa Locators.
Brand name: Quuppa
Product name: Locator
Model number: Q35
Purpose: Quuppa Q35 is a RF transceiver using the 2.4 GHz frequencies
Dimensions: Ø: 342 mm, h: 58 mm (Locator main unit)
Weight: 1300 g
Color: Grey
IP Protection Class: IP66
Operating temp. range: -20°C…+60°C
Storage temp. range: -30°C…+70°C
Power supply: 48 V PoE (Power over Ethernet) or 5V DC (micro USB)
Power consumption: 1 W

PoE and Cable Types

Standard IEEE 802.3at Type 1 PoE, power class 1 (Low power device)

Support for both shielded and unshielded cables
Charger / Adapter: N/A
Certifications:

CE, FCC, IC, UL, Japan, EAC, Brazil, Saudi Arabia, Korea, Australia, New Zealand
Mounting: VESA MIS-F, 200, Y, 6
Important: Quuppa devices should only be used in environments that fit the conditions listed in the above table. Exposure to more stress (e.g. operating the device in higher than recommended temperatures) may affect the reliability of the device or even cause permanent damage to the device.

Positioning Radio

Radio transmission: Bi-directional
Number of channels: 81 channels (1 MHz) but only one at a time
Carrier frequencies:

2401 2402 … 2480 2481 MHz

(Japan: 2402 2403 … 2480 2481 MHz)
Modulation: GFSK
Max Output Power: 3.5 mW
Antenna: Integrated printed IFA antenna with 0 dBi gain
Antenna connector: N/A

Communication Radio

Radio transmission: Bi-directional
Number of channels: 40 channels (1 MHz), only one at a time
Carrier frequencies: 2402 2404 … 2478 2480 MHz
Modulation: GFSK
Max Output Power: 3.5 mW
Antenna: Folded dipole antenna with 0 dBi gain
Antenna connector: N/A

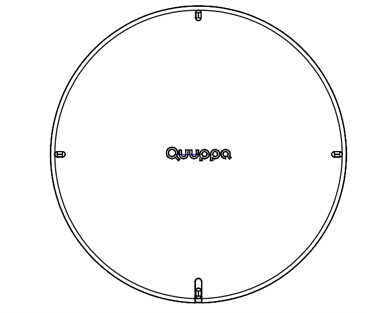

Front View

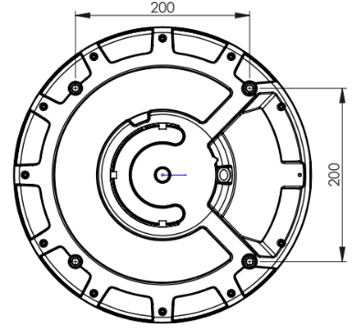

Back View

Environmental Tests

The Q35 has passed the environmental tests listed in the table below.

Test Reference

IP66: dust-proof IP6x, water-proof IPx6

  • Outdoor equipment is tested and rated IP66 according to IEC60529

 IEC/EN60529
Dry heat, +60 °C / <50 %RH / 8 h, in operational mode IEC/EN60068-2-2
Cold, operational IEC/EN60068-2-1

Damp heat operational, +60 °C / 85%, 1 week

IEC/EN60068-2-78 Test Cab: Damp heat, steady state

 IEC/EN60068-2-78
Change of temperature, +60°C/-20°C 1 h cycle, 24h IEC/EN60068-2-14
Dry heat, storage, 70°C IEC/EN60068-2-2
Cold, storage., - 30°C IEC/EN60068-2-1
UV exposure IEC/EN60068-2-5,test Sa, method C. IEC/EN60068-2-5, test Sa, method C.
Resistance for sea water - salt mist cyclic test, 4 week test IEC/EN60068-2-52, test Kb,cyclic salt mist test
Drop test without sales package from 1m IEC 60068-2-32

IK (mechanical impact) test - done for a sample after the UV exposure test

IK09:

• impact energy : 10 J

• number of impacts: five

EN62262

IEC/EN60068-2-75
Random vibration test MIL-STD-810F

UL

(Impact, drop, temperature, flammability, needle flame, chemicals test)

 UL 62368-1 and CAN/CSA C22.2 No. 62368-1-14

CB test certificate by UL

IEC 60950-22:2016,

IEC 62368-1:2014
