QC14 Quuppa Controller Product Specification
The QC14 Quuppa Controller is a preconfigured device for running the Quuppa Intelligent Locating System™. The system allows you to locate and track any objects equipped with Quuppa Tags in an environment where Quuppa Location infrastructure, including our Locators, has been installed.
System
| Processor | Intel® 12th Generation (Alder Lake) |
| Processor Speed | |
| Processor Cores | 4 |
| Chipset | |
| Integrated Graphics | Intel Iris Xe Graphics |
| Memory | 64 GB |
Rear I/O
| Ethernet | 2 Gb LAN ports |
| USB |
2 USB 3.2 Gen 2 ports |
| Video | 2 DisplayPorts |
| Power | 1 12 ~ 24 V, 4-pin DC jack Terminal block |
Front I/O
| USB | 4 USB 3.2 Gen 2 ports, USB-C (Thunderbolt 4) |
| Serial | Multi-COM and System Panel Connector (optional) |
| Other |
1 micro SIM Card slot 1 8-bit DIO port (optional) 1 Audio jack; line-out, mic-in |
Expansion & Management
| Remote Management | Intel vPro |
Mechanical
| Dimensions (WxHxD) | 225 x 50.8 x 177 mm |
| Mounting Options |
DIN-mount VESA-mount Wall-mount |
Environmental & Regulatory
| Operating Temperature | 0°C to 50°C |
| Certifications |
FCC 47 CFR Part 15 (Class A) CAN ICES-003(A) / NMB-003(A) (Class A) CISPR 32 / 35 (EN 55032 / EN 55035 Class A) FCC/CE Class B upon request UL/EN/IEC 62368-1 (UL E490677) NRTL + CB UL/EN/IEC 60950-1(UL E490677) NRTL + CB IEC 60601-1-2 (4th edition) IEC 60945 ETSI EN 301 489 (parts 1; 17; 52) ETSI EN 301 328 ETSI EN 301 893 ETSI EN 300 908 EN 62311:2020 |

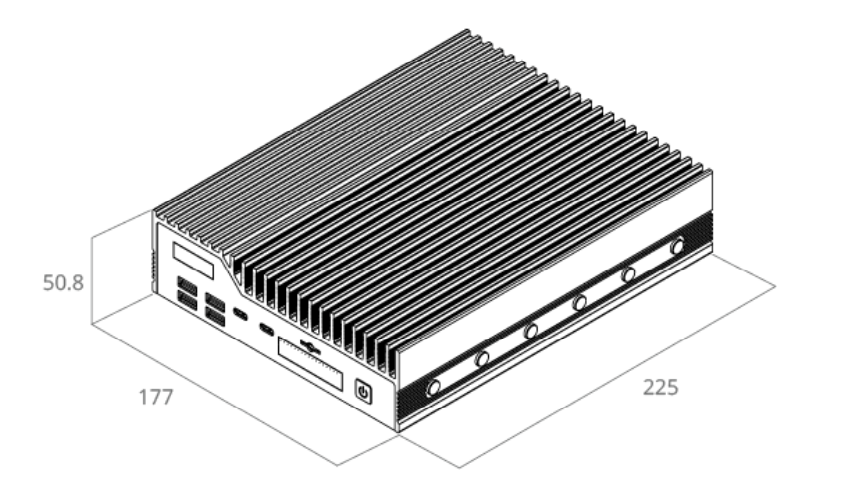

Product Dimensions
For more details, please see the manufacturer's page for the device.
