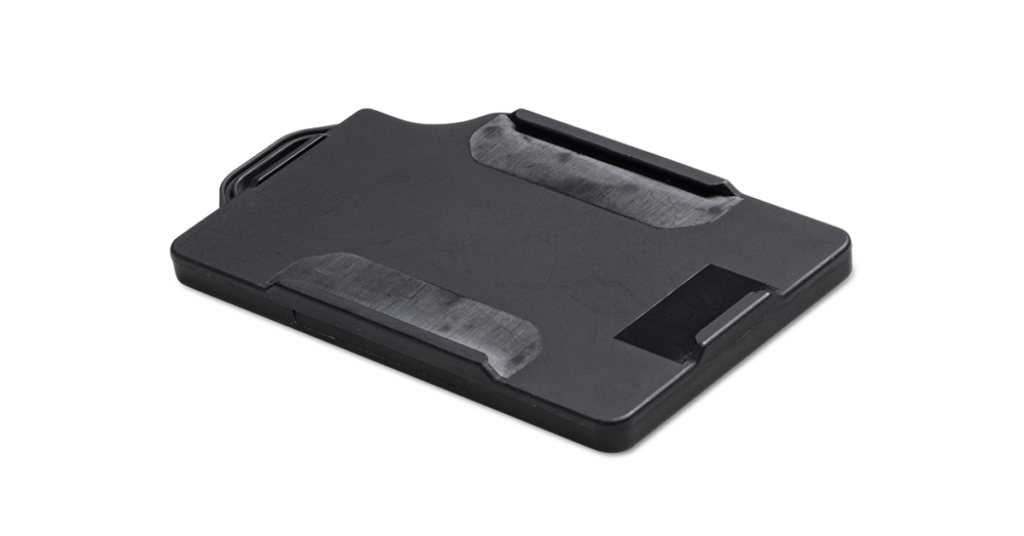

Omni-ID Sense Badge – Portrait is a tag for personnel tracking. It is used in portrait orientation, for example on a lanyard worn around the user’s neck or by attaching the tag to the user’s clothing with a clip.
Omni-ID
Sense Badge – Portrait

Technical Specification
Product number | CP17027 – Portrait |
Applications | People Tracking |
Size | 96 mm x 58 mm x 8 mm |
Weight | 30 g |
Battery type and capacity | 700 mAh |
(sealed prismatic battery, non-replaceable) | |
IP rating | IP68 |
Radio certifications | CE, FCC |
Operating temperature range | -10°C – +60°C |
Functionality | Button, LED (Red), Accelerometer |
Manufacturer | Omni-ID |
For ATEX versions: request further information.
