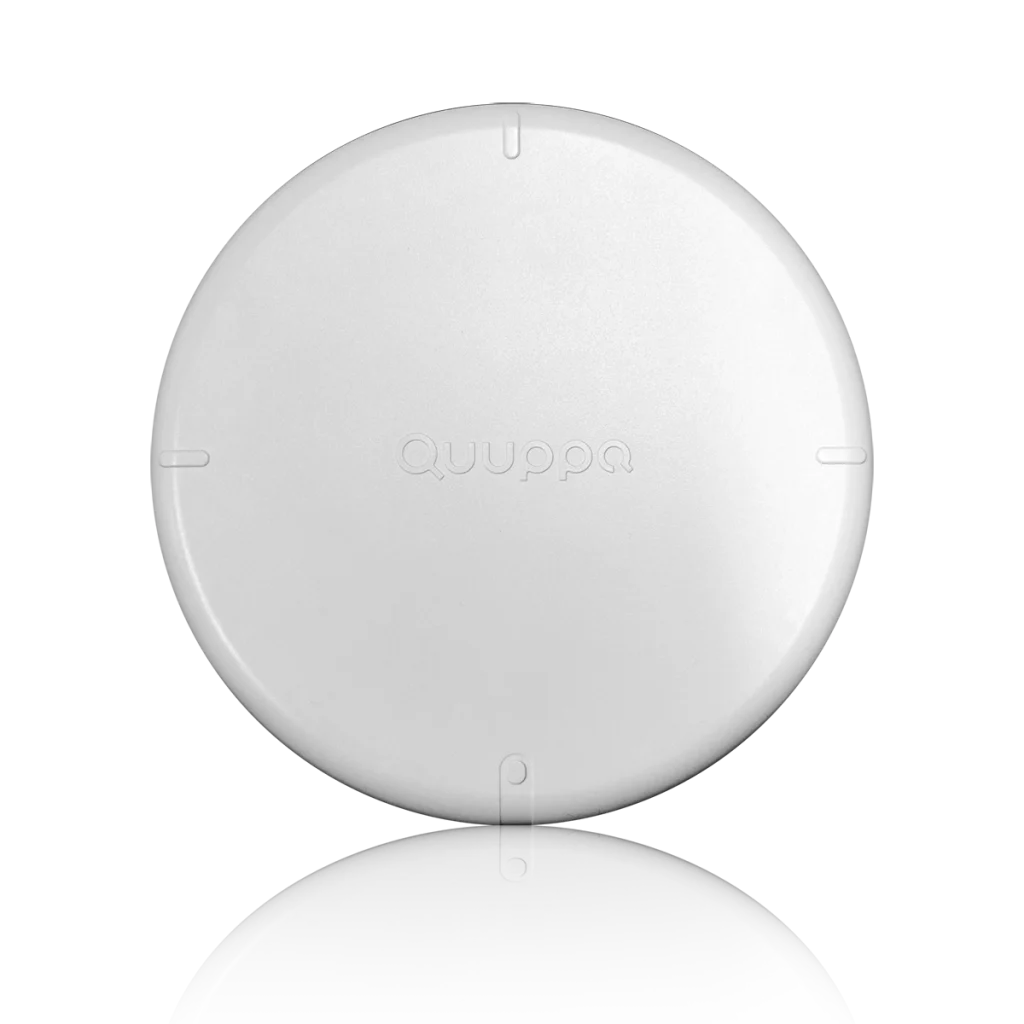

Quuppa Q17 Locator

Q17 is Quuppa’s Generation Q indoor Locator.

The Q17 boasts a smaller, lighter design with a considerable increase in performance and a variety of other improved hardware components and firmware upgrades. Q17 and Generation Q brings Quuppa, once again to the forefront as the definitive leader in Real-Time Locating Systems.

Q17

Design

The Q17 brings together an elegant design as well as being significantly smaller and lighter than it’s predecessor, allowing for higher efficiency in delivery.

Dual Radio

The addition of a Dual Radio allows for the potential to wirelessly upgrade firmware for the tags as well as other future features which utilise wireless communication.

Micro-USB

The Q17 uses a standard Micro-USB port for powering, providing a more streamlined compatibility.

Plug & Play Ethernet

Full duplex, Power Class 1 (Very Low Power) 100Mbit/s Ethernet for faster network connectivity with support for all cable types, enabling plug and play compatibility with all switches.

Upgraded Mounting Bracket

The Q17 includes a simpler and more effective mounting bracket, helping to connect the Locator with considerable ease. Additionally this helps reduce installation time for larger projects.

Enhanced Security

State of the art crypto chip securing the traffic between the Locator and the QPE, authenticated firmware updates, and also allowing isolation mode for deployments in high-security environments.

Dust Resistant & Cable Management

An upgraded design allows for a dust-resistant connection compartment with built in cable management system, also adding to a more sophisticated and sleek product.

Future-Proof Technology

The Q17 provides future compatibility with Quuppa AoD, Bluetooth® 5.1 Standard*, Quuppa Mobile Deployment Tool and potential for wireless Focusing Locators.

Multi-Coloured LED

The upgraded multi-coloured LED allows users to immediately recognise and assess the status of the Locator.

QPE & QSP 6.0

Full integration with Quuppa Software Release 6.0, providing updated software and more features.

Technical Specification

Dimensions 170mm x 170mm x 31mm
Weight 390g
Connectivity Ethernet Connectivity
100Mbit/s Full Duplex
Power 48V PoE (Power over Ethernet)
5V DC (micro USB)
Power Consumption 1W
Operating Temperature 0°C to +60°C
IP Classification IP44

Downloads

Quuppa Q17 Locator
